Nido

Nido seeks to make 3D room design more accessible to people of all kinds, not just technical experts. Scan your room with an iOS app, turn it into a gaussian splat, and design your space on the web with real dimensions. Created as my thesis at ITP NYU, advised by Luisa Pereira. Try it at nido.place.

Role
Developer
Tools
Swift, Python, Three.js, Next.js, Photogrammetry
Timeline
Spring 2026
With
Solo Project
Tags
SwiftPythonAI/MLThree.jsNext.js
47 → 23 min
from scan to finished splat
60 → 6 MB
delivered file size
2M → 171k
gaussians after fixing opacity saturation

ABOUT

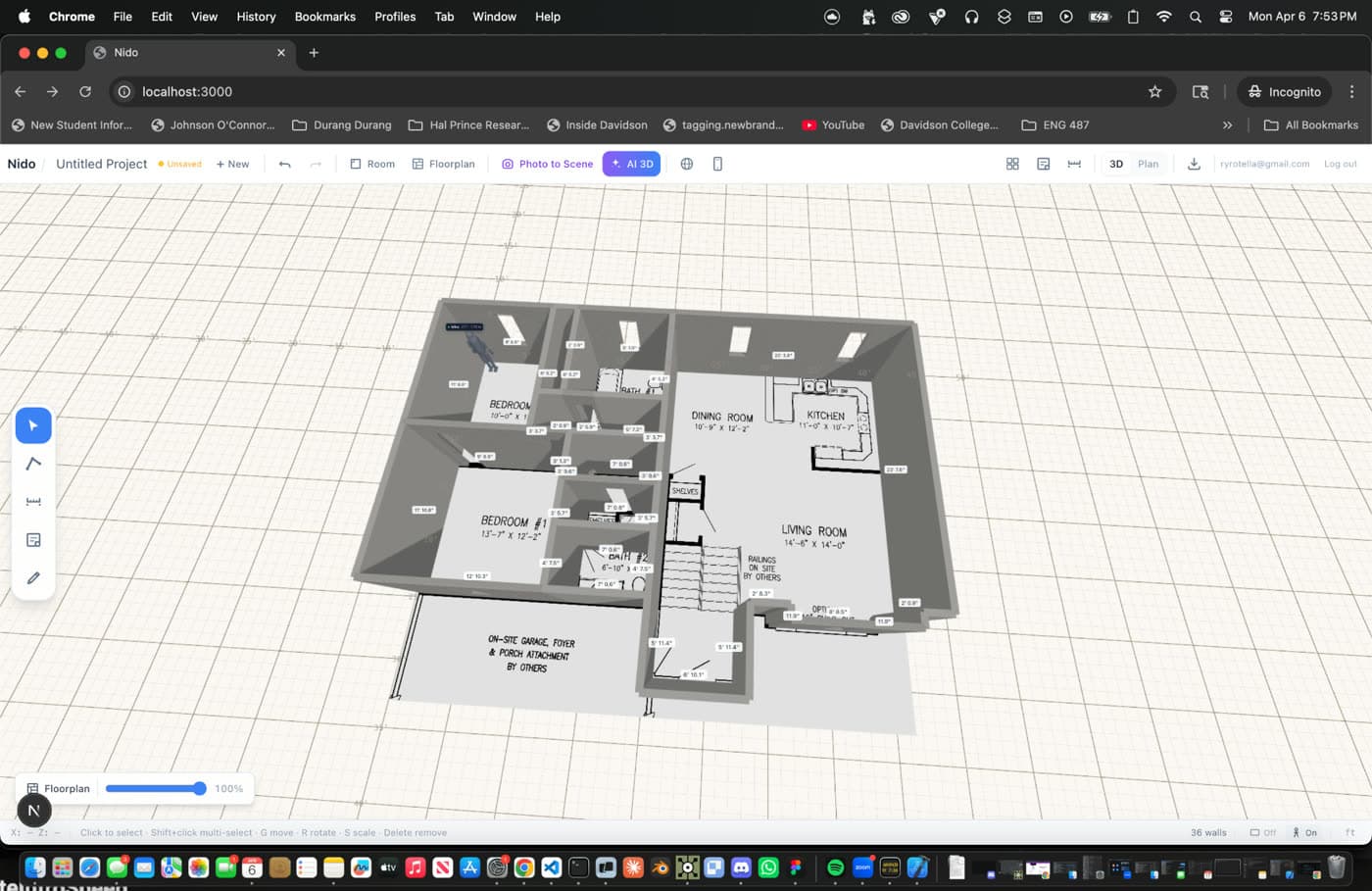

Nido pairs a mobile scanning app with a room editing website. The iOS app uses Apple RoomPlan, Object Capture, and ARKit to capture rooms and objects, which are processed into 3D Gaussian Splats. On the web, spaces are edited in a Three.js / React Three Fiber editor with real-world dimensions. Uploaded floorplans also become editable 3D structures through AI agents, and product images can be transformed into 3D objects.

PROCESS

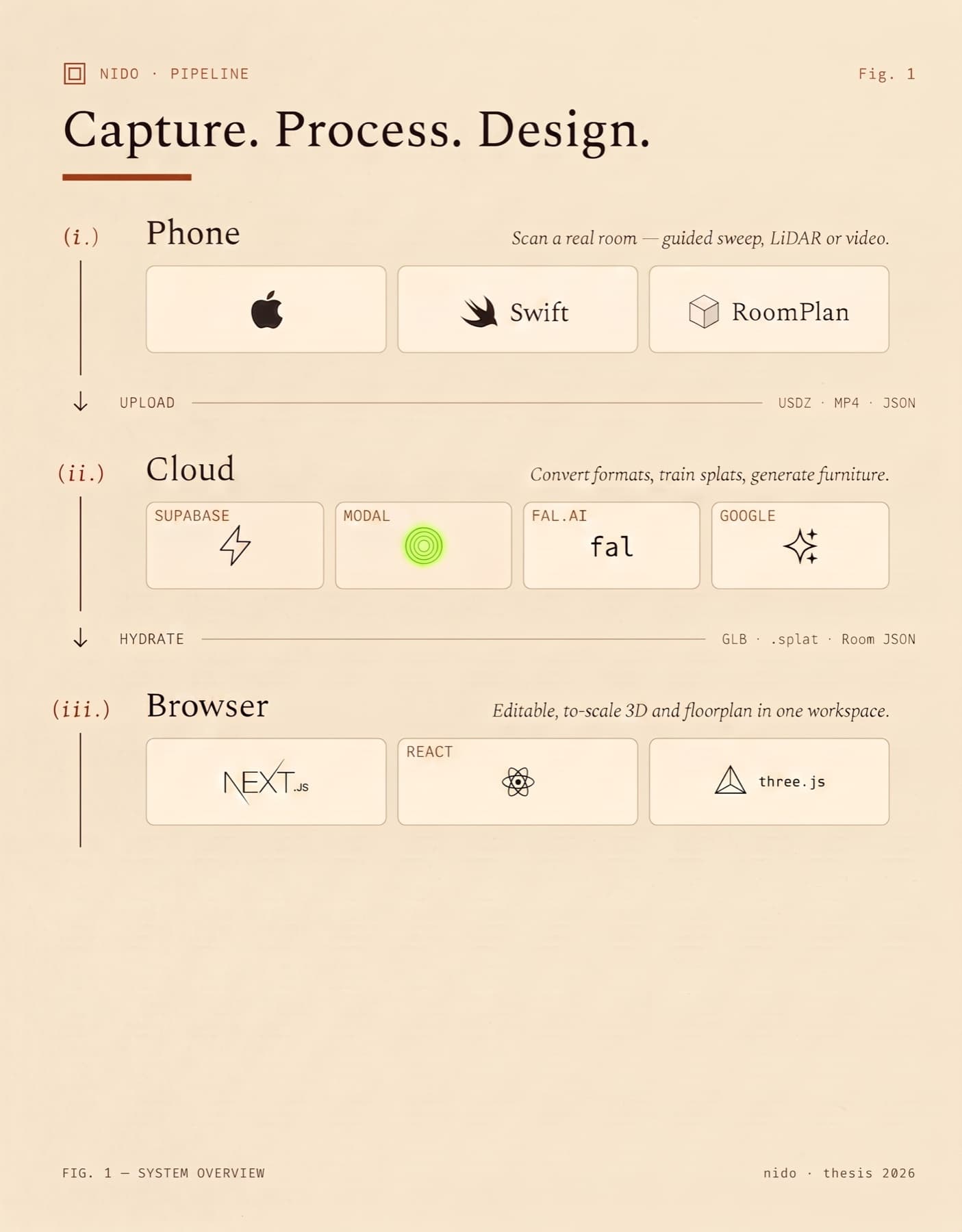

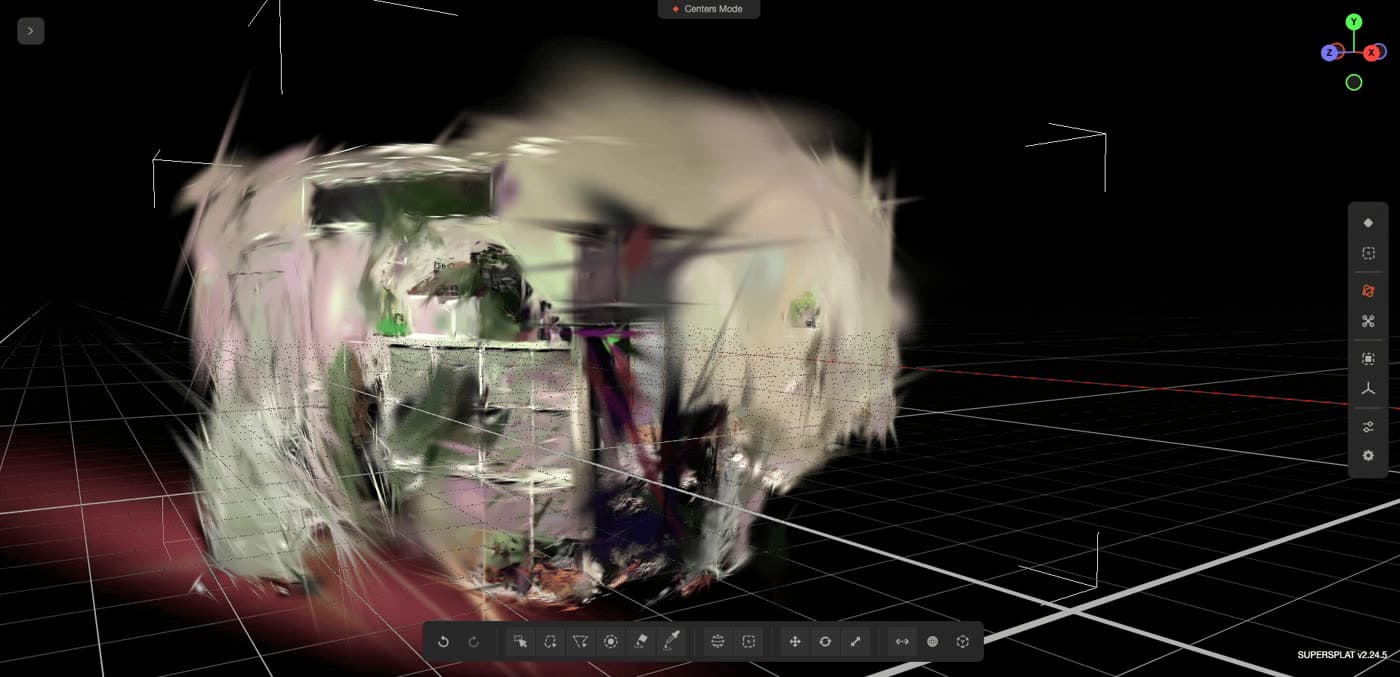

Rooms are captured on iPhone with a guided sweep using LiDAR or video, then uploaded to the cloud, where formats are converted, splats are trained, and furniture is generated. The result is served back to an editable, to-scale 3D workspace with floorplans in the browser.

TRAINING

After the thesis I rebuilt the training pipeline around measurement. Every scan now holds back a set of frames, and each run is scored on how well it predicts them and how closely its depth matches the phone's LiDAR. That made it safe to halve the training schedule: the wait for a finished room dropped from about 47 minutes to about 23 with no visible loss, and switching the delivered file to SPZ cut it from 60 MB to about 6 MB. One method that scored higher on paper but looked worse side by side was turned down.

PRESENTATION

Watch my full thesis presentation below, and read more in the ITP Thesis Archive 2026.

Live 3D scan

Real-time Gaussian splat
Room scanned with Nido, still frame

A bedroom scanned with the Nido app on an iPhone and trained on the 23-minute schedule. The file is 3 MB.

Live site

nido.place
nido.place, still frame

This is the real Nido editor, running inside this page. Launch it and choose Sample Room to explore a demo. It is built for a computer, and on a phone it says so first.

Thesis Presentation

Gallery

12 pieces
